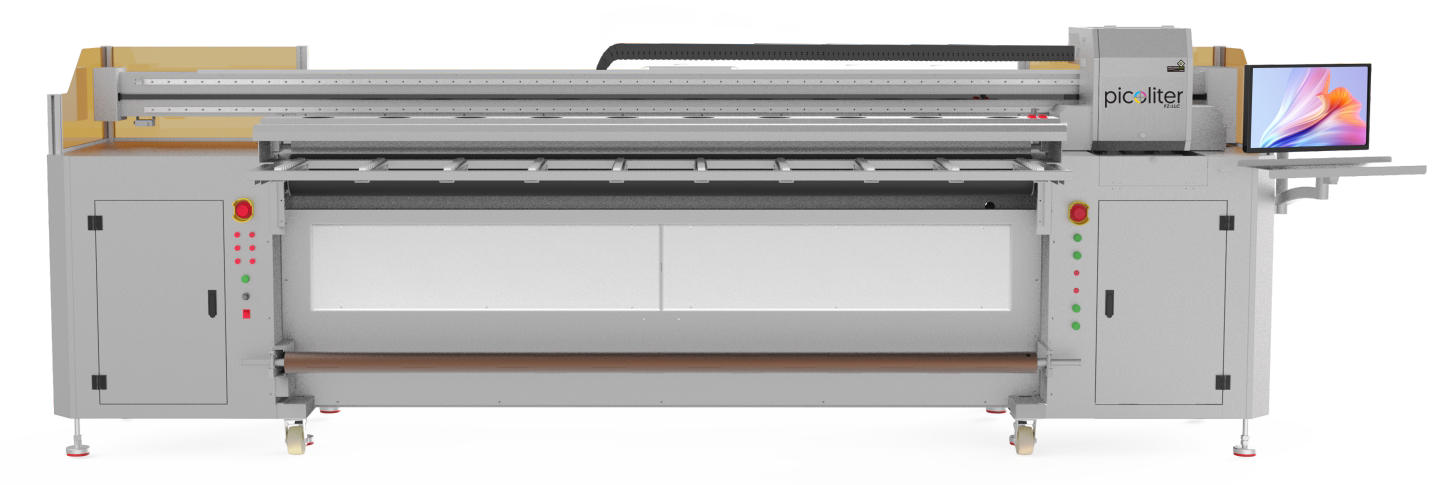

Hybrid Printer

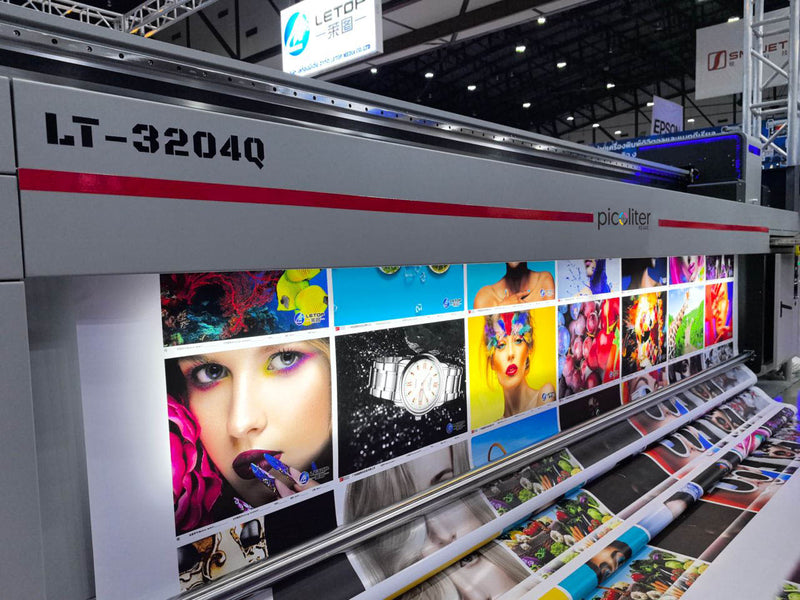

LT-3204Q Technical Specifications
| Parameter | LT-3204Q |
|---|---|
| 产品型号 / Model | LT-3204Q |
| 喷头类型 / Printhead Type | Starfire 1024 25PL 2/pcs |
| 打印速度 / Printing Speed | 4PASS 69㎡/h, 2PASS 124㎡/h |
| 打印宽度 / Print Width | 3200mm |
| 包装尺寸 / Package Size | 4910mm(L) × 1100mm(W) × 1730mm(H) |
| 净/毛重 / Net / Gross Weight | Net Weight: 948kg / Gross Weight: 1000kg |
| 介质类型 / Media Type | Car sticker, Lamp cloth, Adhesive backing, Single lens, Roll media, Etc. |
| 电脑配置 / Computer Configuration | WIN7及以上, 64位; CPU i5或以上; 8 GB RAM; 华硕主板 3.0 GHz; C盘固态 120 GB; 附带1TB硬盘; LAN Network |
| 加热系统 / Heating System | Intelligent sprinkler heating control system |
| 软件 / Software | Maintop, Photoprint, Wasatch RIP (optional) |
| 工作环境 / Temperature & Humidity | Temperature: 20–28°C; Humidity: 38–65% RH |
| 电源功率 / Power | Heating 10000 W, Equipment 800 W |
