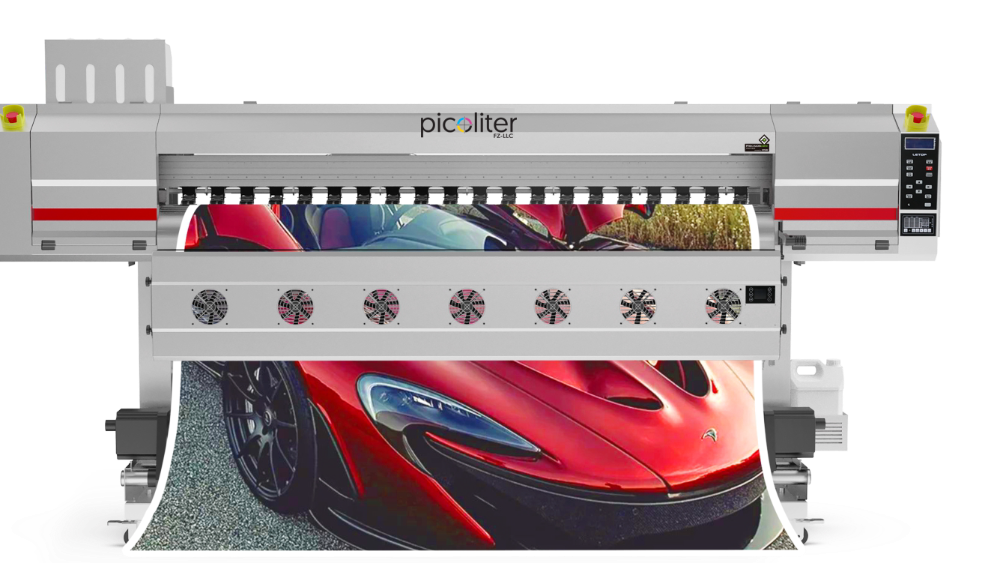

1.8 Meter ECO Solvent Printer
LT-1604E & LT-1904E Technical Specifications
| Parameter | LT-1604E | LT-1904E |
|---|---|---|
| 产品型号 / Model | LT-1604E | LT-1904E |
| 喷头类型 / Printhead Type | I3200 4pcs | I3200 4pcs |
| 打印速度 / Printing Speed | 80 ㎡/4 pass | 80 ㎡/4 pass |
| 打印宽度 / Print Width | 1.6 m | 1.9 m |
| 包装尺寸 / Package Size | 3050 mm (L) × 850 mm (W) × 750 mm (H) | 3350 mm (L) × 850 mm (W) × 750 mm (H) |
| 净／毛重 / Net / Gross Weight | 300 kg / 400 kg | 300 kg / 400 kg |
| 介质类型 / Media Type | PP, 背胶, 灯布, 油画布, 车贴 等 | PP, Adhesive, Light Film, Banner, Canvas, Vinyl, Sticker, Etc. |
| 电脑配置 / Computer Configuration | WIN7及以上, 64位; CPU i5或以上; 8 GB RAM; 华硕主板 3.0 GHz; C盘固态 120 GB; 附带天线; LAN Network | |
| 加热系统 / Heating System | Embedded Constant-temp Synchronous Front & Rear Heating Control | |
| 软件 / Software | Maintop, Photoprint, Wasatch RIP (optional) | |
| 工作环境 / Temperature & Humidity | 20 – 28 °C; 38 – 65 % RH | |
| 电源功率 / Power | Front Heating 6500 W; Pre-/Post Heating 600 W; Drying 850 W | |
